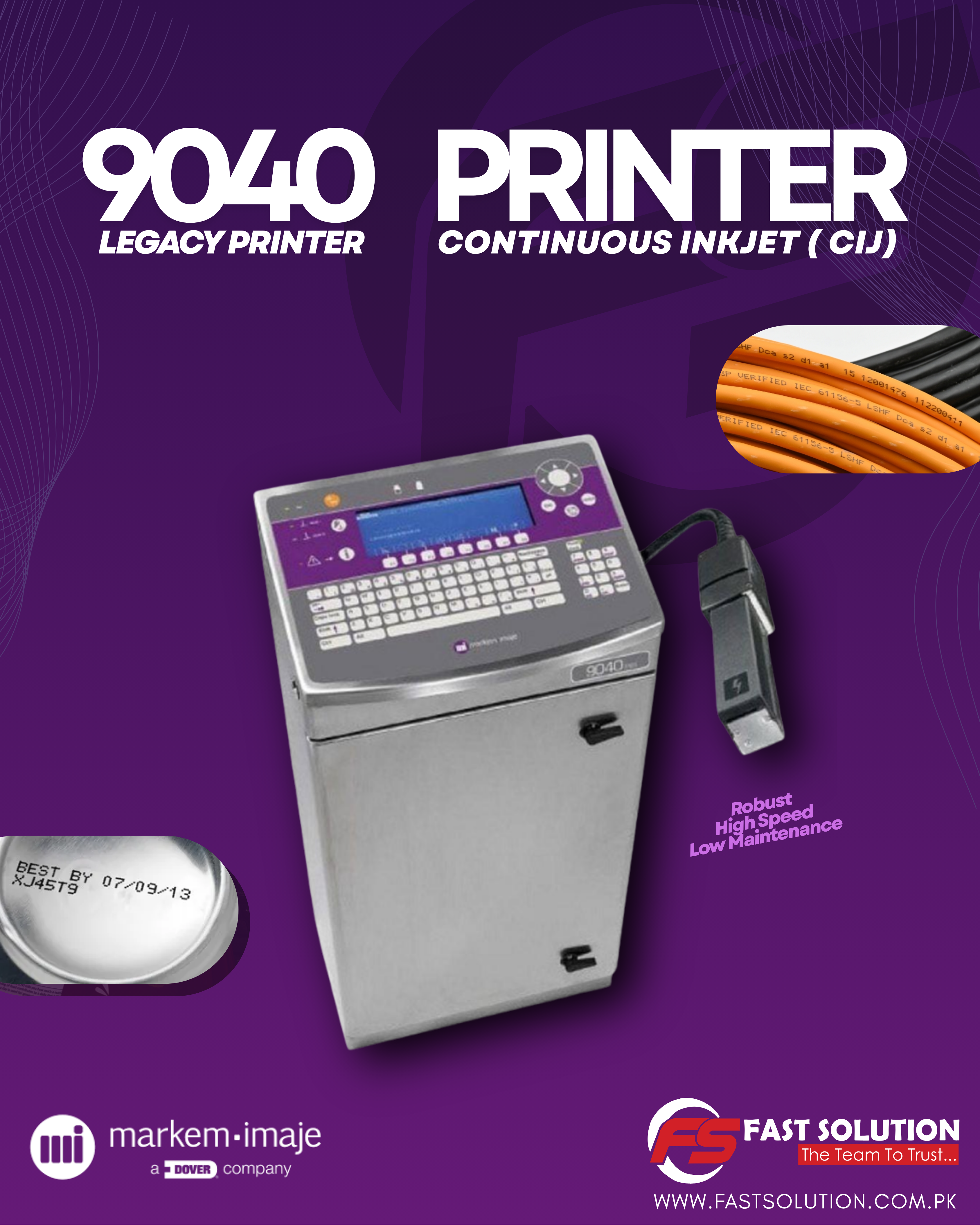

The 9040 Contrast prints logos, alphanumeric text and 1D and 2D barcodes. The 9040 Contrast is the best solution for marking in automotive, aerospace, cable and extrusion industries. The 9040 model stands as the top of the line of the Series printing all types of codes including logos, Datamatrix, etc. Its wide range of inks meets every industries’ requirements. It can operate in some of the most demanding environments and industries.

• Mono or bi-jet printhead

• Single or dual printhead systems

•  G head (printing resolution: 71 dpi) -

   M head (printing resolution: 115 dpi) -

   P head (printing resolution: 178 dpi)

• Up to 8 lines of text

• Print speed: up to 5.5 m/s

• Font sizes from 5 dots to two 24-dot lines

• Character height from 0.7 mm to 18.2 mm

• One and two-dimensional barcodes (Datamatrix)

• Wide selection of characters (Latin, Arabic, Cyrillic, Greek, Japanese, Chinese, Hebrew, Korean…)

 Message library (up to 2000 messages)

• User interface available in 29 languages

• Large WYSIWYG backlit display

• Creation of logos directly on the user interface

• PCMCIA, Compact Flash and SD cards capable

• USB Port

• Jet Speed Control for optimum print quality

• Automatic font selection; print speed and printhead to substrate distance dependent

• Wide range of inks: fast-dry and alcoholbased

• 2 tanks (1 liter each)

• Quick connect interface panel for accessories (photocell, encoder, alarm)

• RS-232/422 connectivity, parallel interface and I/O slot for remote access

• Ethernet connectivity

Weight: 40 kg

• 3-meter flexible umbilical

• Stainless steel cabinet

• Dust/humidity protection rating: IP54

• No plant air required

• Operating temperature range: 0° to 50° C

• Humidity: 10% to 90% non-condensing

• Electrical power supply: 100-120 V or 200 - 240 V with automatic switching; frequency 50/60 Hz; power 200 VA

Options

• IP65 (requires plant air)

• High speed (S version)

• Printhead pressurization kit

• 5 or 8-meter flexible umbilical

• 90° bent umbilical

• 90° bent printhead

Accessories

• Printhead stand (aluminum or stainless steel)

• Various printhead brackets

• Stainless steel printhead cover

• Photocell

• Encoder

• Alarm beacon (24 V)
