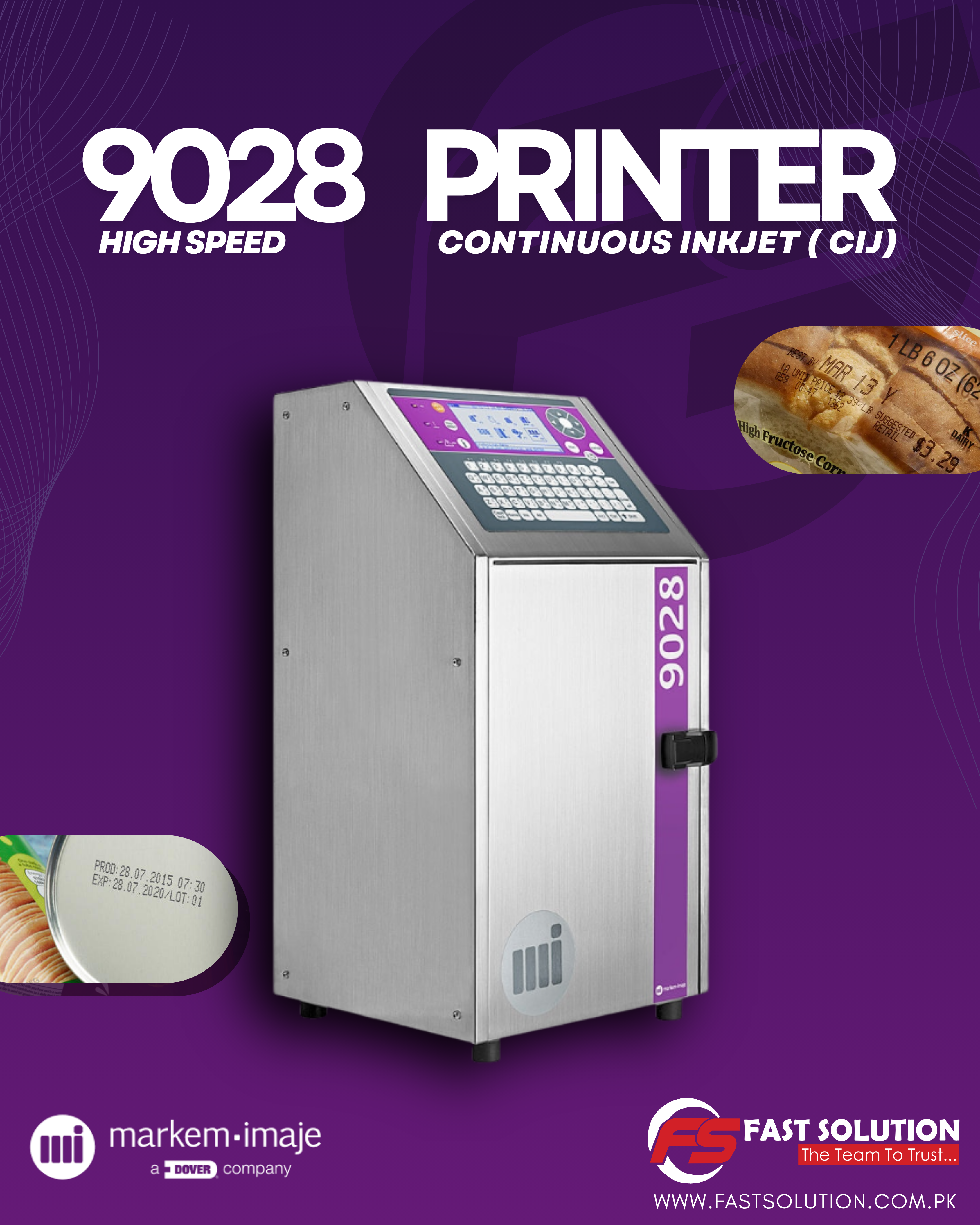

Engineered to bring you the innovation you deserve with the simplicity you require, the Markem-Imaje 9028 will facilitate daily operations and save you time!
Easy to change, the M6’ can be clicked-in and clicked-out in less than 6 minutes and with no specialized tools. Also, its new innovative cartridge system and associated ink offer (MEK-free and permanent ink) make set-up automatic and clean, optimizing your operators’ time and your overall production uptime.
With its straightforward design, the 9028 is ready to print minutes after your purchase even in the harshest environments.
Get Now Download Pdf.png)
Engineered to bring you the innovation you deserve with the simplicity you require, the Markem-Imaje 9028 will facilitate daily operations and save you time!
Easy to change, the M6’ can be clicked-in and clicked-out in less than 6 minutes and with no specialized tools. Also, its new innovative cartridge system and associated ink offer (MEK-free and permanent ink) make set-up automatic and clean, optimizing your operators’ time and your overall production uptime.
With its straightforward design, the 9028 is ready to print minutes after your purchase even in the harshest environments.
Mono-jet printhead
▶ G head (printing resolution: 71 dpi)
▶ Up to 4 lines of print
▶ Print speed: up to 4.4 m/s
▶ Font height from 5 to 24 dots
▶ Character height: from 1.8 to 8.7 mm
▶ Wide choice of characters (Latin, Arabic, Cyrillic, Greek, Japanese, Chinese, Hebrew, Korean…)
Message library (up to 100 messages)
▶ International operator/machine interface (choice of 31 languages)
▶ Large wysiwyg backlit blue screen
▶ Integrated help for navigation and diagnostics
▶ Creation of logos directly on the operator/machine interface
▶ USB port
▶ M6’ ink circuit
▶ Jet Speed Control guarantees marking quality
▶ Automatic selection of fonts, depending on print speed and printhead/object distance
▶ Possibility to choose ink types: quick-drying MEK-free and MEK, alcohol-based, color changing for sterilization process
▶ 2 sealed intelligent cartridges, 0.8 liter each
▶ Quick connect/disconnect of accessories (photocell, encoder, alarm)
▶ RS-232 connectivity
: Weight: 18.5 kg
▶ 2-meter flexible umbilical cable
▶ Stainless steel cabinet
▶ Dust/humidity protection rating: IP55 rating
▶ No plant air required
▶ Operating temperature range: 0° to 40°C, depending on ink used
▶ Humidity: 10% to 90% non-condensing
▶ Electrical power supply:100 - 120 V or 200 - 240 V with automatic switching; frequency 50/60 Hz; power 34 W
One and two-dimensional barcodes (Datamatrix)
▶ Ethernet connectivity
▶ Printhead pressurization kit (plant air required)
▶ Autonomous pressurization kit (no plant air required)
▶ 3-meter umbilical
Printer supports: stands (stainless steel or aluminum), table or wall mounting bracket
▶ Stainless steel printhead cover
▶ Photocell
▶ Encoder
▶ Alarm beacon (24 V)
